How To Mount A Winch On A Truck: Expert Tips & Step-by-Step Guide
Mounting a winch on your truck can seem challenging, but it’s a straightforward task. With the right tools and guidance, anyone can do it.
A winch is an essential accessory for off-road enthusiasts and those who need to tow or pull heavy loads. It can help you get out of sticky situations, like mud or snow, and assist in various recovery operations. Installing a winch on your truck enhances its utility and safety.
In this guide, we will walk you through each step of the mounting process. From selecting the right winch to securing it on your truck, you’ll learn how to get the job done effectively. Get ready to equip your truck with this powerful tool!
Credit: www.vevor.com
Choosing The Right Winch
Mounting a winch on your truck can be a game-changer, but choosing the right winch is crucial. The right winch can make your off-roading experience seamless, while the wrong one can lead to complications. Let’s delve into the different aspects of choosing the right winch for your truck.
Types Of Winches
There are two main types of winches: electric winches and hydraulic winches. Each type has its own advantages and disadvantages.
- Electric Winches: These winches are powered by the truck’s battery. They are easier to install and operate. They are ideal for occasional use.
- Hydraulic Winches: These winches are powered by the truck’s hydraulic system. They are more reliable for heavy-duty use. They work well even when the engine is not running.
Winch Capacity
Winch capacity refers to the maximum weight the winch can pull. It’s important to choose a winch with the right capacity for your truck.
To determine the right capacity, follow this simple formula:
Minimum Winch Capacity = Gross Vehicle Weight x 1.5
For example, if your truck’s weight is 5,000 lbs, the minimum winch capacity should be:
5,000 lbs x 1.5 = 7,500 lbs
A winch with higher capacity will be more versatile and reliable. It will handle tough situations better. Below is a table summarizing the winch capacities:
| Truck Weight (lbs) | Recommended Winch Capacity (lbs) |
|---|---|
| 4,000 | 6,000 |
| 5,000 | 7,500 |
| 6,000 | 9,000 |
Make sure to check the winch’s pulling power. It should match or exceed the weight of your truck. This ensures safety and efficiency during use.
Gathering Necessary Tools
Mounting a winch on a truck requires the right tools. Start by gathering all necessary tools and safety gear. This ensures a smooth installation process. Below, we list the essential items you need.
Basic Tools
Having the right tools is crucial for the job. Here is a list of basic tools you will need:
| Tool | Purpose |
|---|---|
| Socket Set | For tightening bolts and nuts. |
| Wrenches | To secure various fasteners. |
| Screwdrivers | For screws and small fittings. |
| Drill | To make holes for mounting. |
| Measuring Tape | For accurate measurements. |
Ensure all tools are in good working condition. This helps avoid delays during the installation process.
Safety Gear
Safety is paramount when working on your truck. Always wear the necessary gear:
- Gloves: Protect your hands from cuts and bruises.
- Safety Glasses: Shield your eyes from debris.
- Work Boots: Provide good grip and protect your feet.
- Ear Protection: Use when operating loud tools.
- Face Mask: Prevent inhalation of dust and particles.
Remember, safety gear is essential. Never start work without it. Keeping yourself safe should be the top priority.
Preparing Your Truck
Mounting a winch on your truck is a valuable upgrade. Before installation, you must prepare your truck properly. Proper preparation ensures a secure fit and long-lasting performance. Let’s dive into the steps.
Inspecting The Mounting Area
First, inspect the mounting area on your truck. Check for any damage or rust. Ensure the area is strong enough to hold the winch. Look for pre-drilled holes or mounting points. Use a flashlight for better visibility.
Cleaning The Surface
Next, clean the surface where you will mount the winch. Remove any dirt, grease, or debris. Use a wire brush for stubborn grime. Wipe the area with a clean cloth. A clean surface ensures better adhesion and a solid mount.
Credit: www.discountramps.com
Installing The Winch Mount Plate
Mounting a winch on your truck starts with installing the winch mount plate. This plate serves as the base for your winch. It ensures stability and safety during use. Follow these steps to install the mount plate correctly.
Aligning The Plate
First, locate the ideal spot on your truck’s frame. The winch mount plate should be placed where it’s accessible and provides the best support.
Steps to align the plate:
- Check your truck’s frame for any pre-drilled holes.
- Place the mount plate over these holes.
- Ensure the plate is level and centered.
Use a measuring tape to double-check the alignment. A properly aligned plate ensures the winch works effectively.
Securing The Plate
Once aligned, the next step is securing the plate. This step is crucial for safety and functionality.
Steps to secure the plate:
- Gather the necessary bolts, washers, and nuts.
- Insert bolts through the plate and truck frame.
- Place washers on the other side of the bolts.
- Tighten the nuts securely using a wrench.
Make sure each bolt is tight. A loose plate can cause the winch to malfunction.
Tip: Use a torque wrench to ensure the bolts are tightened to the manufacturer’s specifications.
After securing the plate, check for any movement. The plate should be firm and stable.
Mounting The Winch
Mounting a winch on your truck can seem daunting at first. But with the right steps, it becomes manageable. This section will guide you through positioning and bolting the winch. Follow these steps to ensure your winch is secure and ready to use.
Positioning The Winch
First, find the best spot on your truck’s frame. The front bumper is a common choice. Make sure the winch sits flat on the mounting surface. Check for any obstructions. Ensure the winch line can pull straight without interference. This will help in smooth operation.
Next, mark the mounting holes. Use the winch as a guide. This ensures accuracy. Double-check the alignment. Proper positioning is crucial. A misaligned winch can cause problems.
Bolting The Winch
Now, it’s time to bolt the winch. Gather the necessary hardware. This usually includes bolts, washers, and nuts. Place the winch on the marked spots. Insert the bolts through the mounting holes.
Use a wrench to tighten the bolts. Do this gradually. Tighten each bolt a little at a time. This ensures even pressure. Check the tightness of each bolt. The winch should be secure but not overly tight. This prevents damage to the mounting surface.
Finally, inspect your work. The winch should be firmly attached. There should be no movement. A well-mounted winch will serve you well. Happy winching!
Connecting The Electrical Components
Connecting the electrical components of your winch is crucial. This ensures your winch operates smoothly and efficiently. Properly wiring and testing the system is essential for safety and functionality.
Wiring The Winch
Begin by gathering your tools and materials. You will need:
- Winch wiring kit
- Battery cables
- Wire cutters
- Crimping tool
- Heat shrink tubing
First, disconnect the truck battery to avoid any accidents. Connect the positive cable from the winch to the positive terminal on the battery. Secure the connection using a crimping tool and heat shrink tubing.
Next, connect the ground cable from the winch to the truck’s chassis. Ensure the ground connection is clean and free of rust. Use a wire brush if necessary.
Route the cables safely to avoid any interference with moving parts. Use zip ties to secure the cables in place.
Testing The Electrical System
Reconnect the truck battery. Turn on the winch to check the connections. Listen for any unusual sounds. Ensure the winch spool rotates smoothly.
If the winch does not operate correctly, recheck all connections. Look for loose or corroded connections.
Test the winch under load by pulling a small weight. Observe the winch’s performance. It should pull smoothly without hesitation.
Regularly inspect and maintain the electrical components. This ensures your winch stays in good working condition.

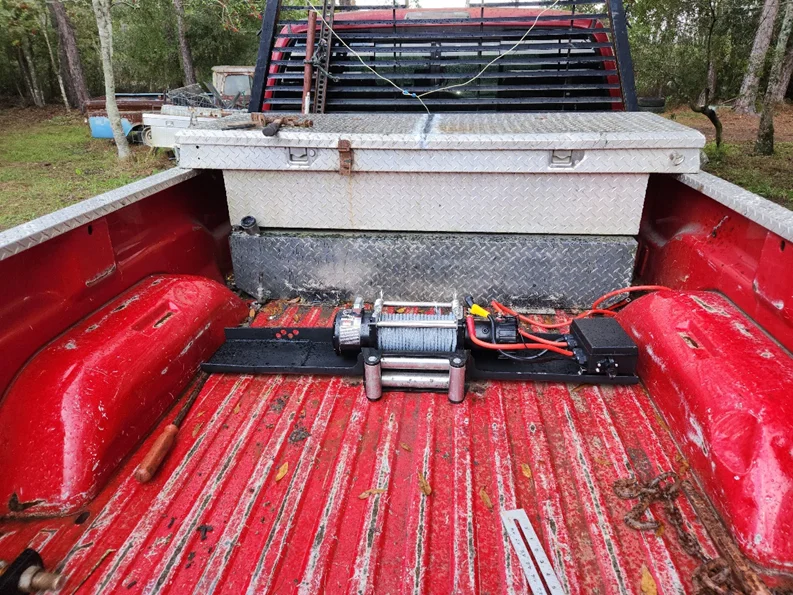

Testing The Winch
Testing the winch after installation is crucial. It ensures your winch operates correctly and safely. A proper test can reveal issues early, allowing you to fix them before needing the winch in a real situation.
Initial Winch Test
Start by checking the winch’s power connection. Ensure the battery connections are tight and the wiring is secure. Turn on the winch and listen for any unusual noises. Unwind the cable a few feet to check for smooth operation. Wind it back in and look for smooth and consistent movement.
Test the remote control. Engage the winch using the remote, ensuring it responds promptly. Test both the in and out functions. Make sure the winch stops immediately when you release the button. Check the mounting bolts. Tighten them if they feel loose.
Troubleshooting Common Issues
If the winch does not power on, check the battery. Ensure it is fully charged and all connections are clean and secure. If the winch is slow, inspect the power cables. They should be free of damage and corrosion.
In case of unusual noises, listen carefully. Grinding or clicking sounds may indicate a mechanical issue. Check for debris in the winch drum. Clean it if necessary. If the winch cable binds or jerks, inspect it for kinks. Straighten or replace damaged sections.
Always refer to the winch’s manual for specific troubleshooting steps. Regular testing and maintenance keep your winch reliable and ready for use.
Maintenance Tips
Maintaining your truck winch is crucial for its longevity and performance. Regular upkeep ensures it works when needed, especially in critical situations. Here are some key maintenance tips to keep your winch in top shape.
Regular Inspection
Inspect your winch regularly. Look for any signs of wear or damage. Check the cable for frays, kinks, or rust. Ensure the mounting bolts are tight and secure. Examine the electrical connections for corrosion or loose wires. Regular inspections can catch problems early, preventing bigger issues later.
Lubrication
Lubricate the moving parts of your winch. This reduces friction and prevents wear. Use a high-quality lubricant designed for winches. Apply it to the cable, drum, and gears. Avoid over-lubricating as it can attract dirt and debris. Regular lubrication keeps your winch running smoothly and efficiently.
Credit: www.youtube.com
Frequently Asked Questions
How Do You Mount A Winch On A Truck?
Mounting a winch involves securing it to the truck’s frame. Ensure the winch plate is compatible with your truck. Use high-grade bolts and follow the manufacturer’s instructions for wiring. Double-check all connections and test the winch before use.
What Tools Are Needed To Mount A Winch?
Basic tools include a wrench set, drill, and socket set. You may also need a torque wrench, safety gloves, and eye protection. Always refer to the winch manufacturer’s guide for specific tool requirements.
Can I Mount A Winch By Myself?
Yes, you can mount a winch by yourself. However, having an extra pair of hands can be helpful. Follow the instructions carefully and ensure safety precautions are in place.
How Long Does It Take To Install A Winch?
Installing a winch typically takes about 2 to 4 hours. The time may vary based on your experience and the specific winch model. Prepare all tools and read the manual beforehand to save time.
Conclusion
Mounting a winch on a truck is a straightforward task with the right tools. Follow the steps carefully for a secure and effective setup. Always prioritize safety during installation. Regular checks ensure the winch remains in good working condition. This investment boosts your truck’s utility and readiness.
Now, your truck is prepared for off-road adventures and heavy-duty tasks. Enjoy the added capability and peace of mind. Happy winching!
